Nozzle Band Heaters

Nozzle Band Heaters

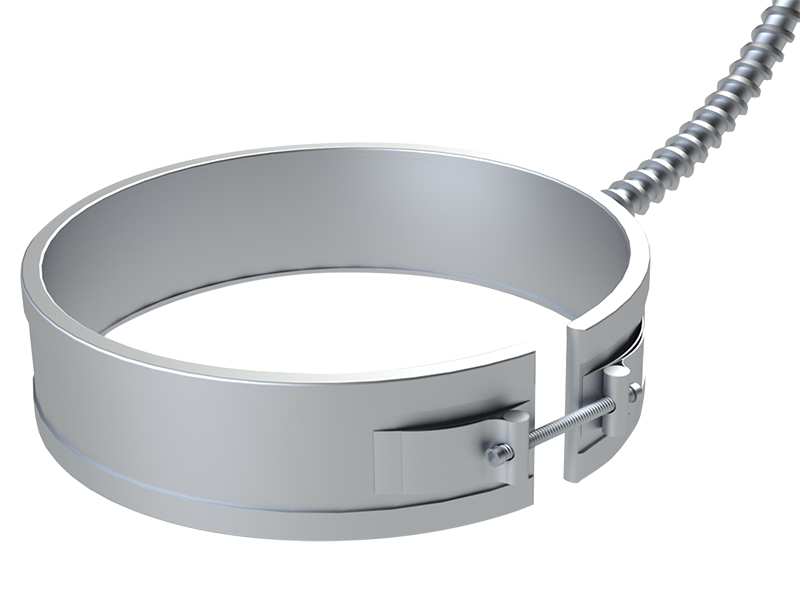

We produce a wide range of high-quality Mica Nozzle Heater Bands, which are tailored to meet our customer’s needs.

Our range varies from a Low-Cost option up to the more engineered Types, which are designed to give additional protection against material ingress.

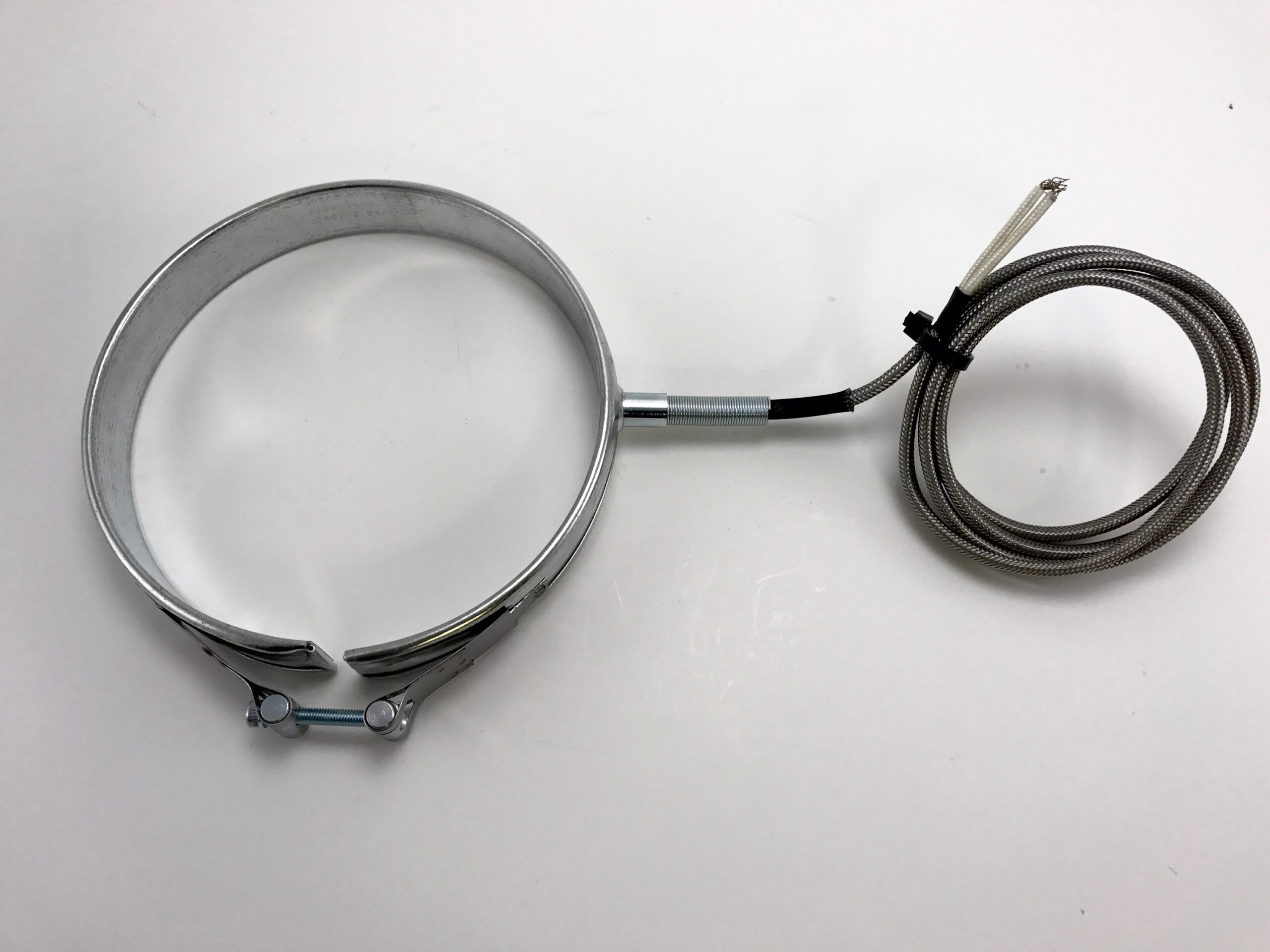

-These Nozzle Heaters can be supplied with either Glass Fibre or Metal Braided leads at virtually any length. All designs can be fitted with a dedicated earth lead & a built-in Type ‘J’ or Type ‘K’ Thermocouples if required.

FEATURES
  • Mica Nozzle Band Heaters:
  • Sheath material brass.
  • Max. operating temp 280°C.
  • Max.surface load 25w/sq. inch.
  • Fiberglass or Teflon insulated SS mixed wire terminals.
  • Plastic proof Nozzle Band Heaters:
  • Plastic proof.
  • Sheathing material high-grade steel or brass.
  • Operating temp brass 280°C – SS 350°C.
  • Max. surface load Brass 30w/sq. inch, SS sheath 45w/sq. inch.
  • Metal braided Fiberglas wire terminals.
  • High Watt Leakproof Nozzle Band Heaters:
  • Plastic proof.
  • Sheathing material high-grade steel.
  • Max. operating temp 600 °C.
  • Max.surface load 60 w/Sq. inch.
  • Insulation – high-grade mineral insulation.
  • Metal braided fiberglass wire terminals.
APPLICATION
  • Extruders
  • Blow Molding Machines
  • Injection Molding Machines
  • Blow Film Dies and Various Cylindrical applications.
